SPITFIRE Building plan in PDF format

SPITFIRE Mk XIV Building plan only

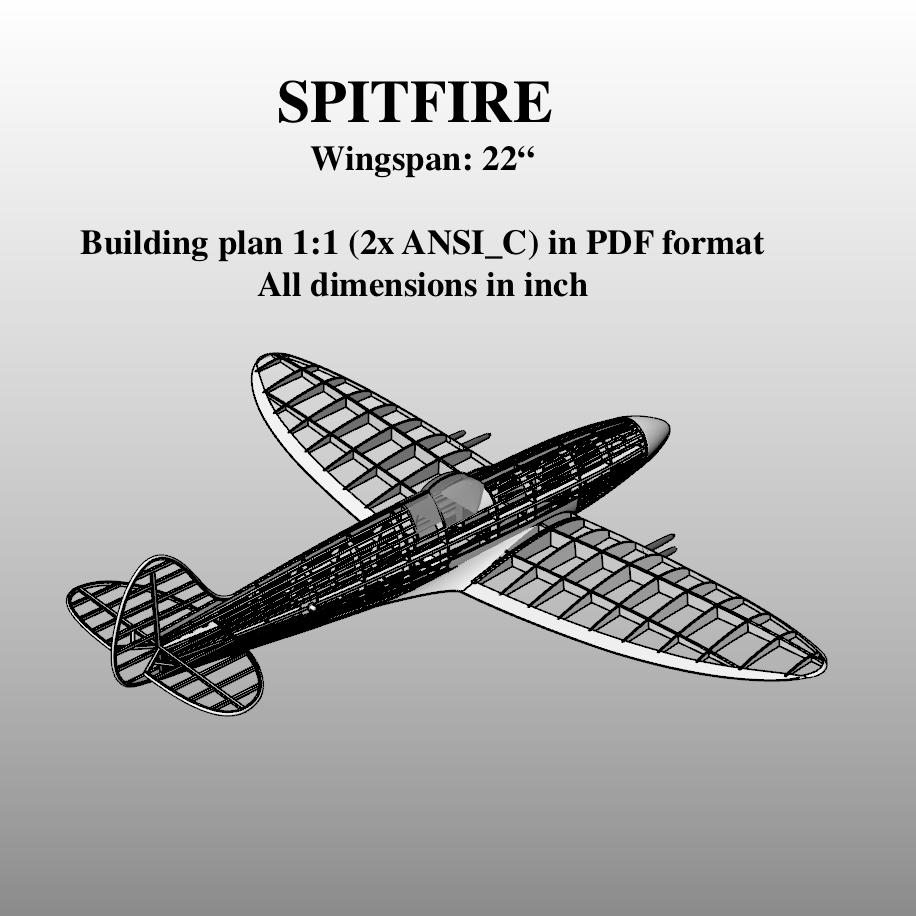

The building plan for the SPITFIRE model (with a wingspan of 22 inches) is intended for those who want to test their skills or for modelers from the "old school" accustomed to building their models practically from scratch. The model plan (in 1:1 scale) is spread across twoANSI_C-sized sheets and is in PDF format or
eight Lettersheets (8 1/2 x 11")
Verifying that you've printed the plan in the correct size is easy. Each drawing includes a 10-inch (or 5inch) verification rectangle. All measurements on the plan are in inches. The model is based on a proven design by the renowned Czech modeler L. Koutný. Although I will personally build the model for testing purposes, I anticipate no difficulties in its construction or flying. Once you've built the model yourself, don't forget to proudly showcase your creation.

c

The building plan is available in PDF format in two versions.
On 2 large sheets of ANSI_C size
Or it can be printed on a small printer on 8 sheets of Letter (8 1/2 x 11) and then glued.
ANSI_C 2x

LETTER 8x

Interested in the SPITFIRE 1:20 but don't have your own laser to make the parts?

Take advantage of the opportunity to purchase my kits from the company Sky High RC (link to SPITFIRE 1:20 :
https://skyhighrc.co.uk/spitfire-xiv-scale-free-flight...)

This company is the exclusive manufacturer of models designed by Balsa Airplanes Design(https://rpolednik.gumroad.com)
